Wizzard Lawn Tractor Deck Rebuild

Restoring an old, worn out lawn tractor deck.

Wizard Lawn Tractor Deck Rebuild

42" Mower Deck

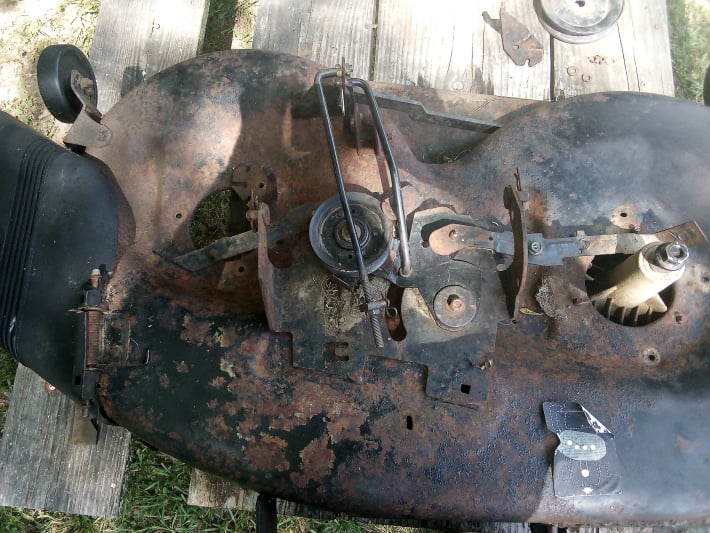

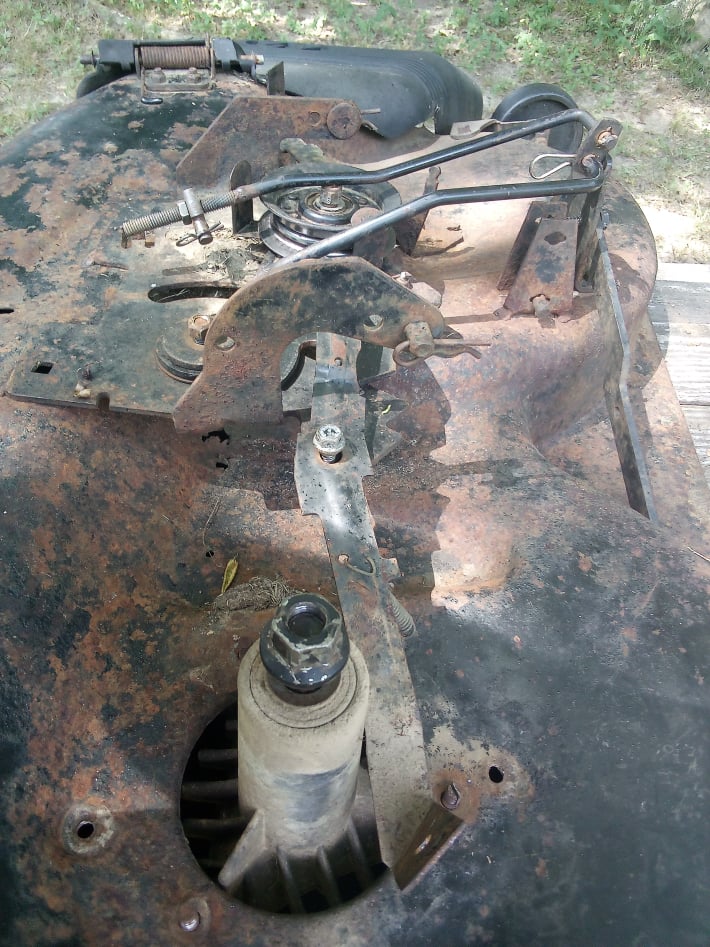

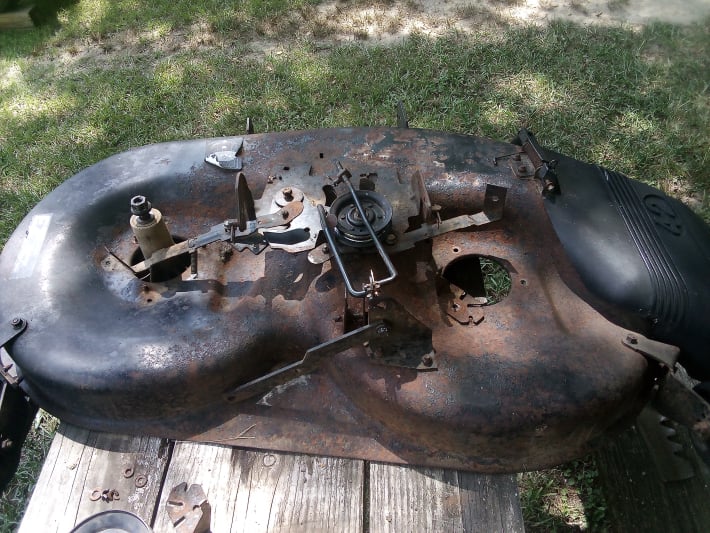

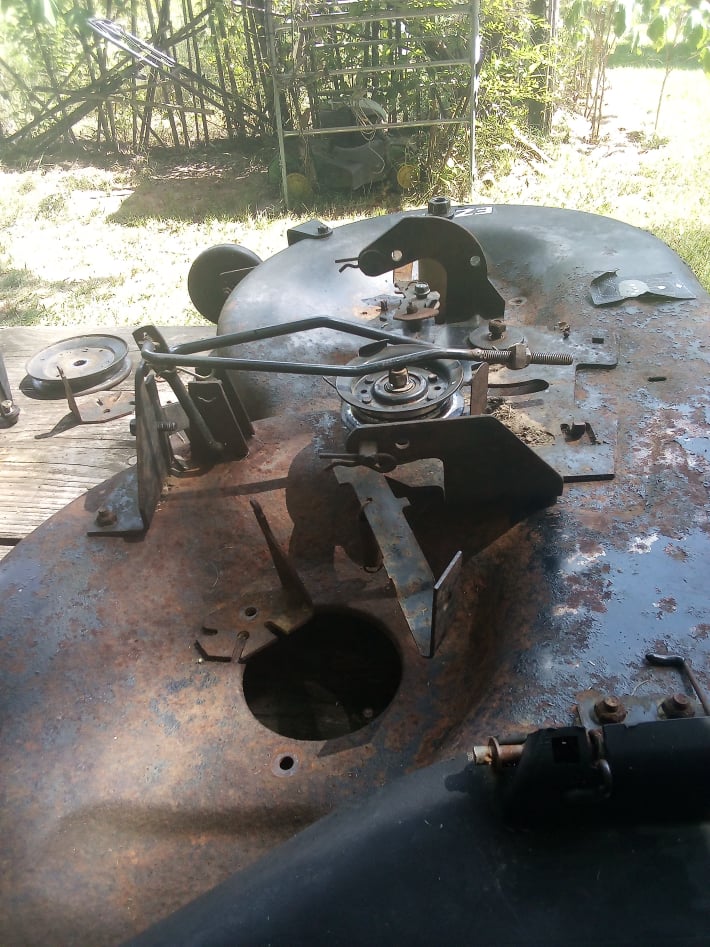

worn out mower deck
worn out mower deck
worn out mower deck
worn out mower deck

Basically everything is worn out on this mower deck. The spindle bearings are trashed, & the spindles themselves have enough issues to warrant full replacement. There are issues with the linkages as well, & the pulleys along with their bearings are in poor shape. This deck represents just about the worst shape mechanically as you can get before catastrophic failure, which is actually what has occurred. It's time to either throw it away or get to work rebuilding it. We chose to go with the latter.

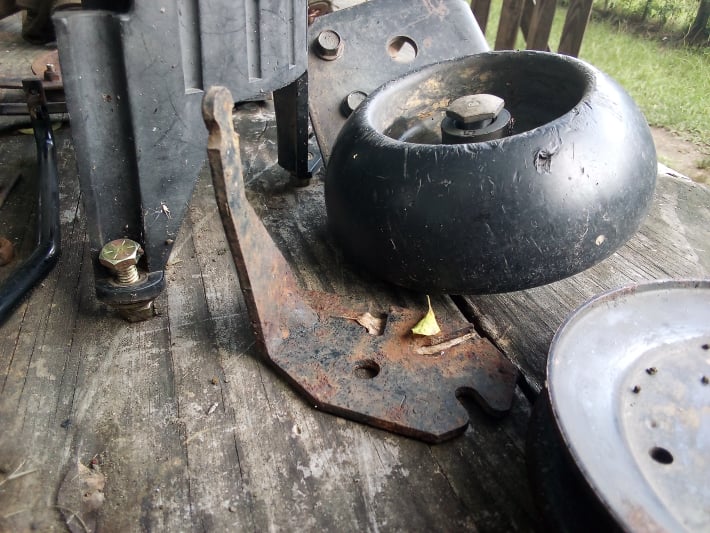

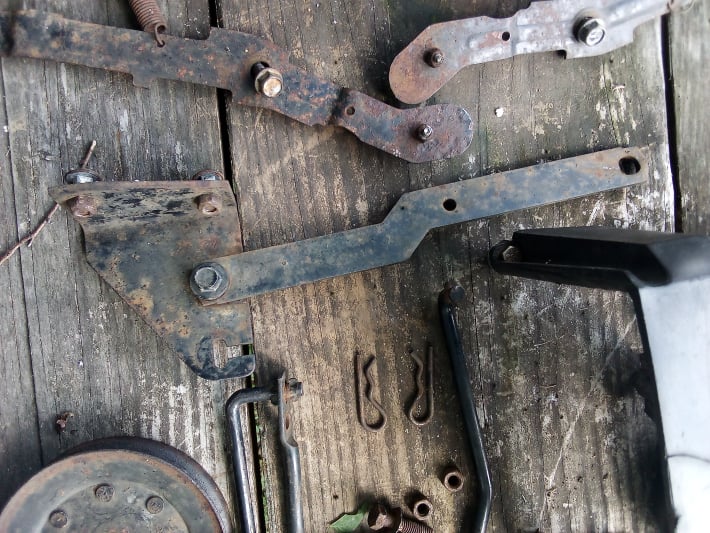

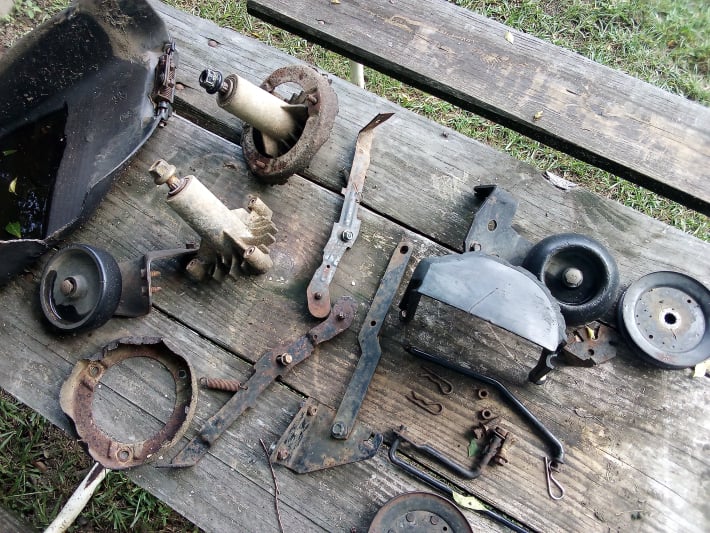

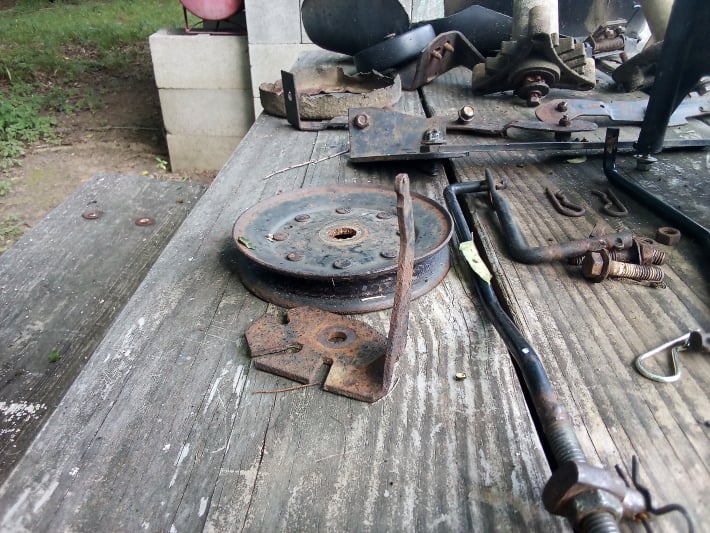

Disassembling the deck & determining what needs to be replaced or repaired.

disassembling mower deck
disassembling mower deck
disassembling mower deck
disassembling mower deck

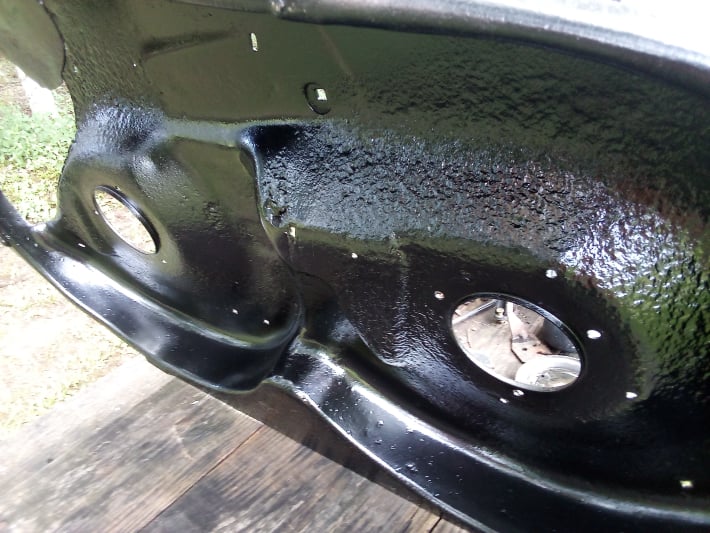

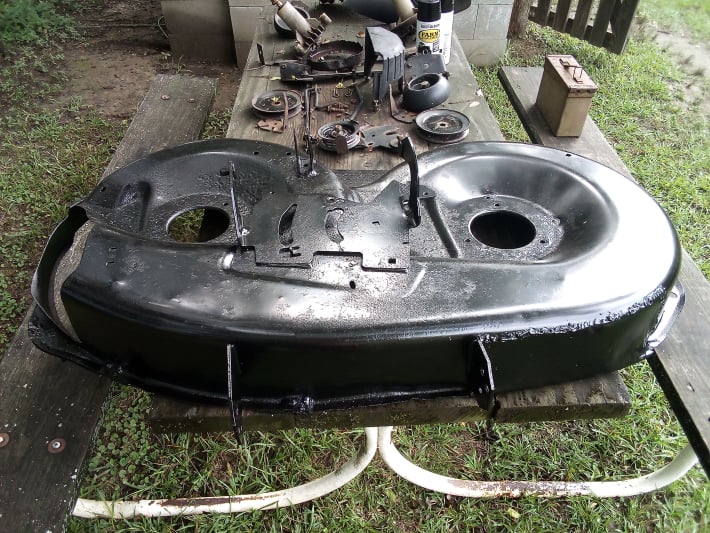

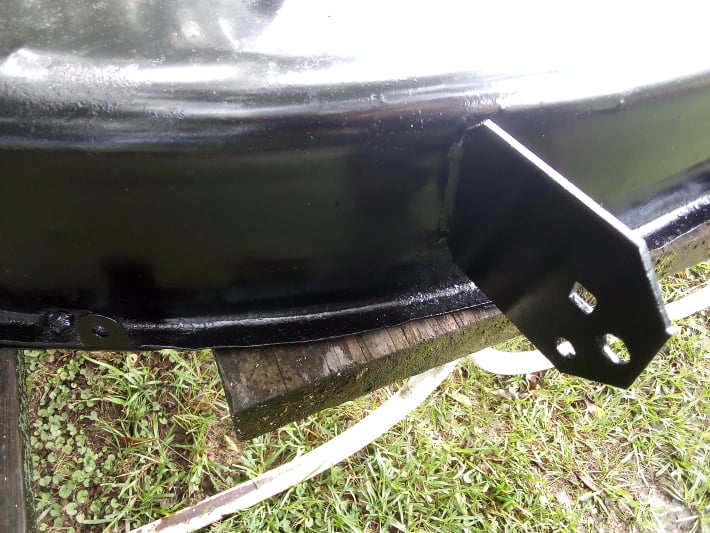

Cleaning up the deck with a wire wheel on an angle grinder, & giving it a fresh coat of paint.

cleaning mower deck & painting
cleaning mower deck & painting
cleaning mower deck & painting

New spindles, rings, & pulleys

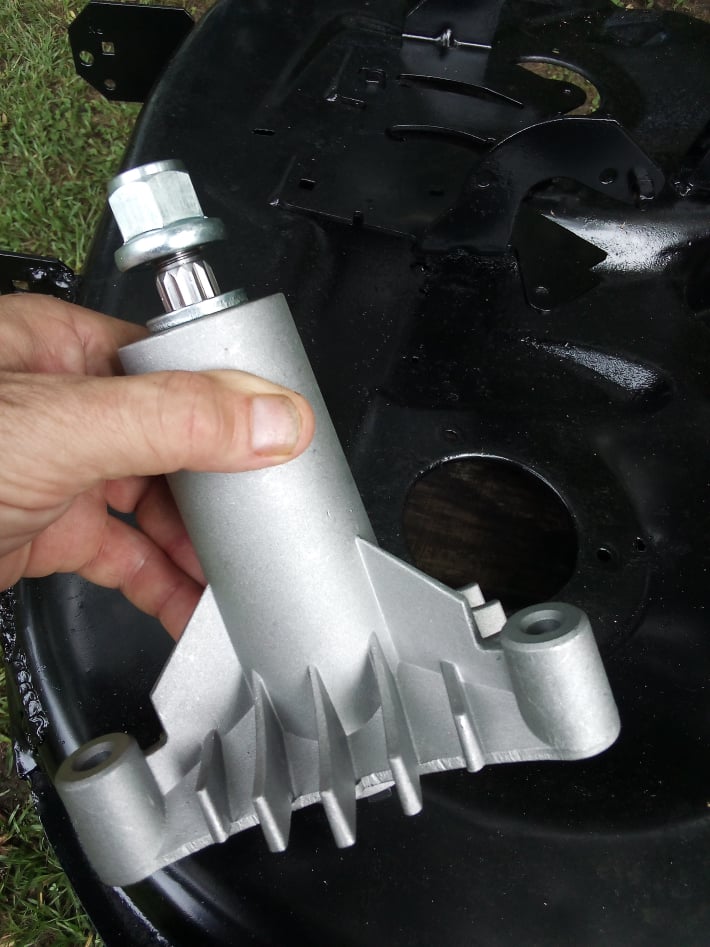

new spindle
The new spindles are identical to the originals.
new ring for spindle
The rings that protect the spindles were torn up, so replacements were necessary.

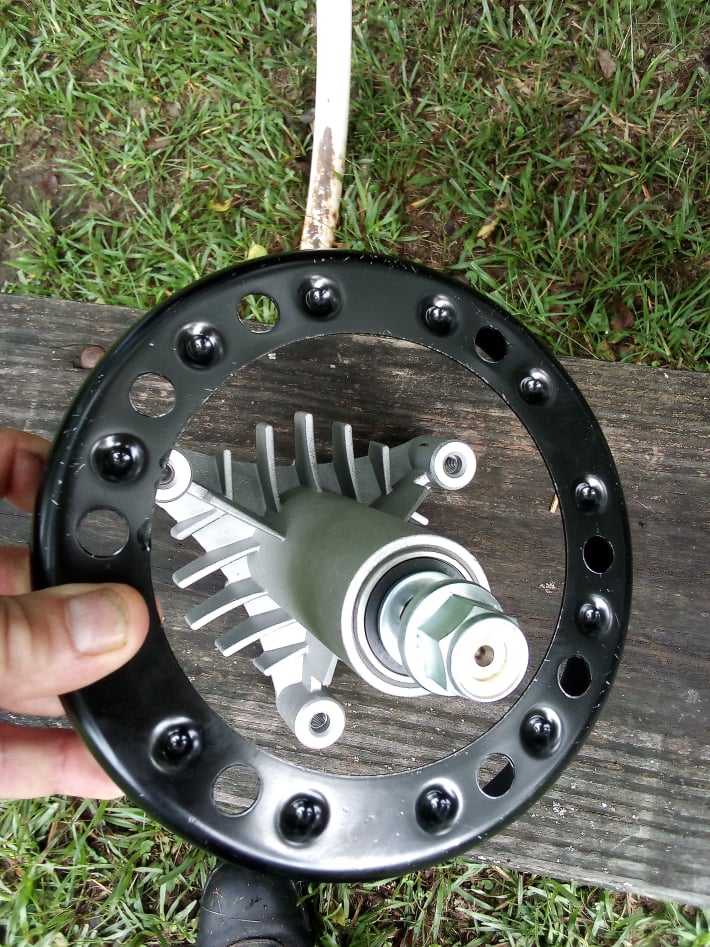

new spindle with ring

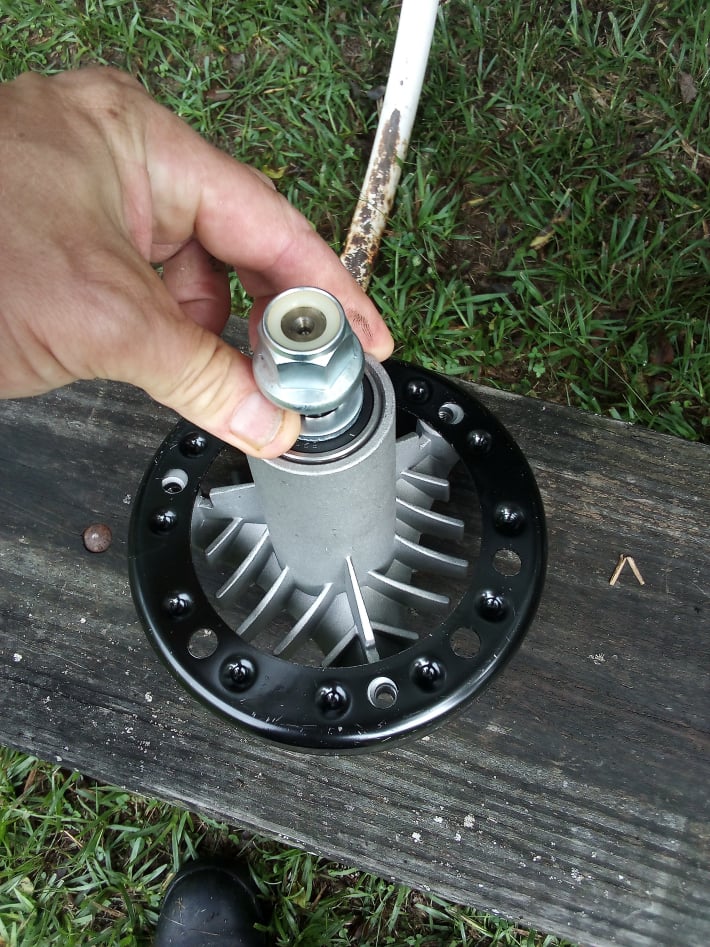

Installing rings on spindles.
installing spindles & pulleys

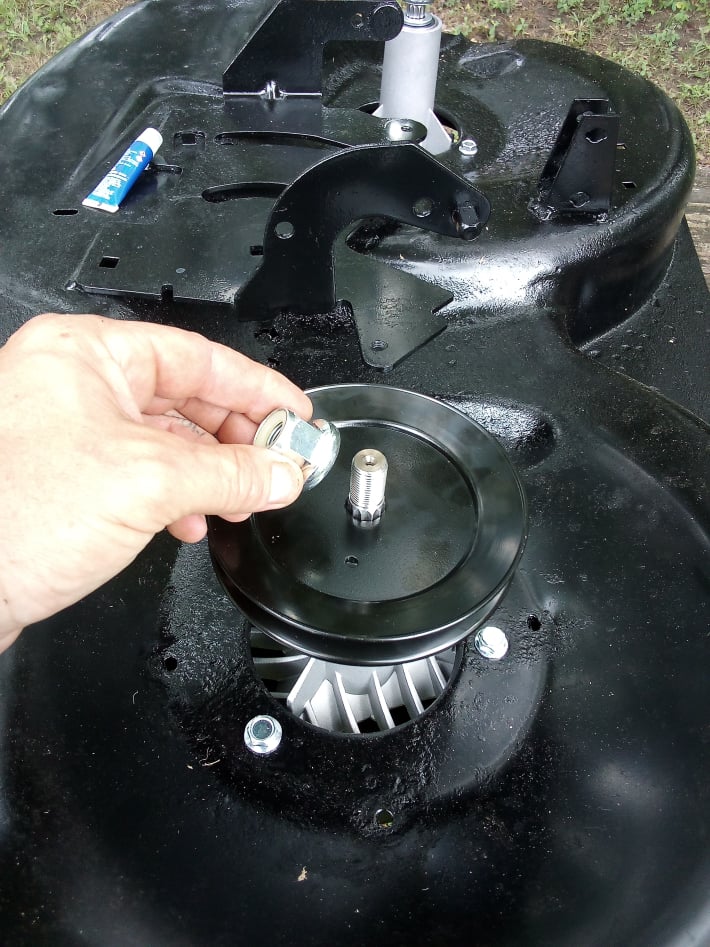

Installing the new pulleys.

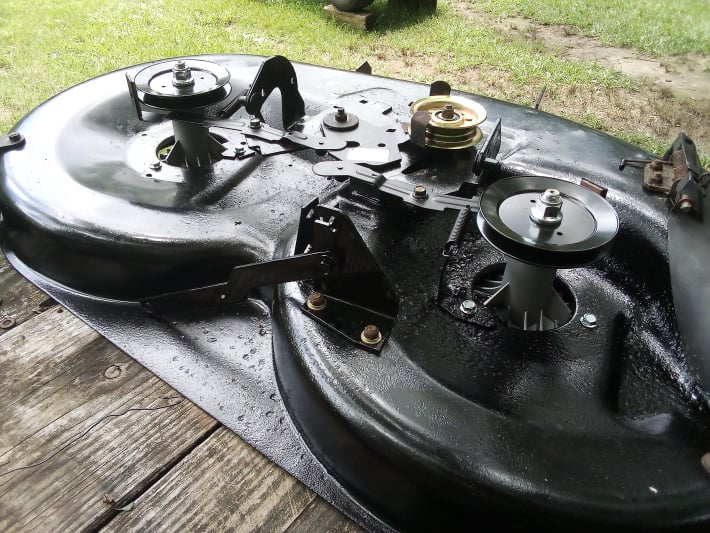

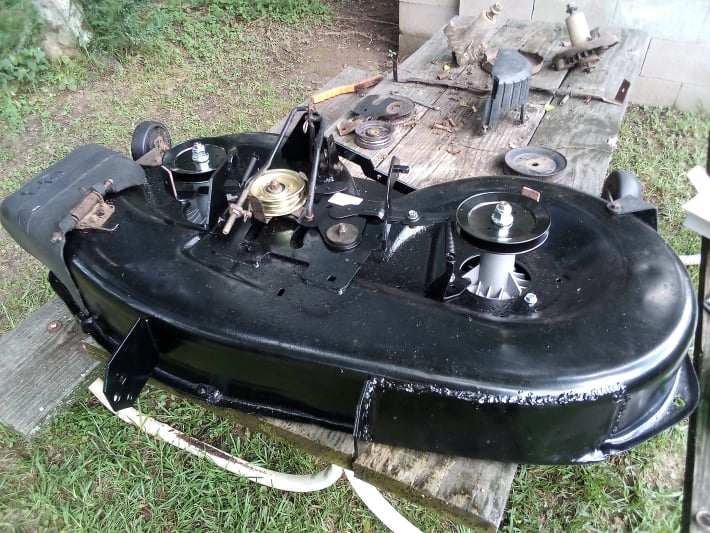

Deck is fully assembled & ready to be installed on the tractor.

completing deck assembly
Fully assembled deck.
completing deck assembly
All in all, it looks pretty good. The only real issues it has at this point is some pitting in the metal, but this is only cosmetic & has been protected from further deterioration by the new coat of paint.
completing deck assembly

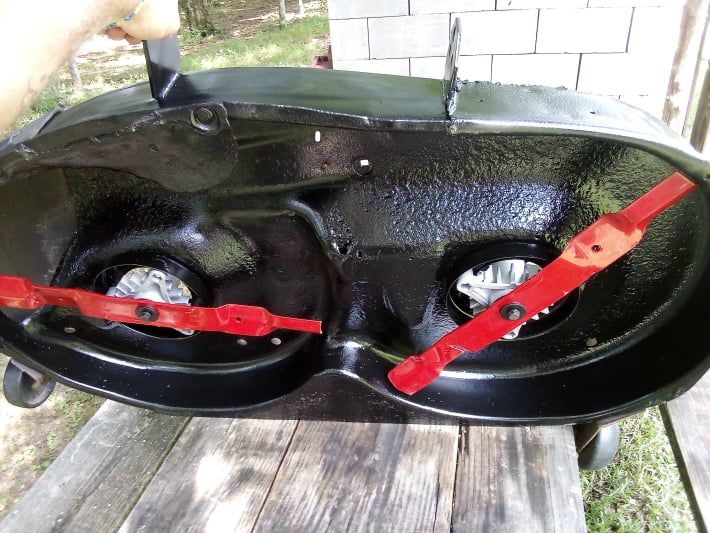

Brand new blades, & we are ready to install it on the tractor.

The rebuild cost us less than $200usd. A new deck was over $600 to purchase & would have had to be shipped. Even a used deck ran around $400, so we did pretty good. It cuts just like new now & we hope to get another couple decades out of it (that's how old it was when it was rebuilt). All of the parts were readily available online.
